Gear-driven Cl Flexo Press
The "Horizon" Economic CI Flexo Press offers a cost-effective flexographic printing solution with gear-driven mechanics. Designed for simplicity and efficiency, it features a compact footprint, easy web threading, and low operational costs. Ideal for businesses seeking high-speed, stable performance at an economical price.
The "Horizon" Economic CI Flexo Press offers a cost-effective flexographic printing solution with gear-driven mechanics. Designed for simplicity and efficiency, it features a compact footprint, easy web threading, and low operational costs. Ideal for businesses seeking high-speed, stable performance at an economical price.
Features:

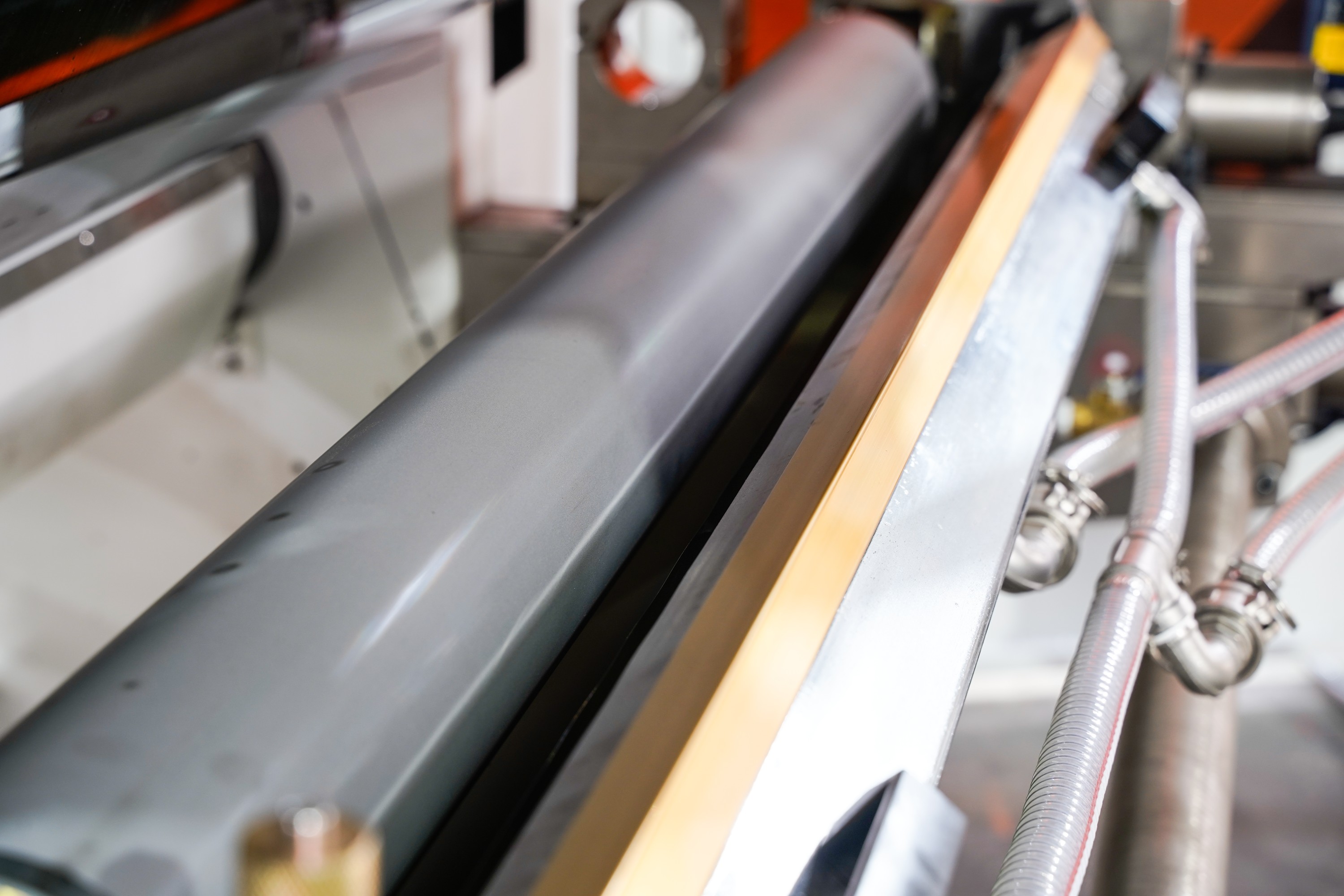

Gearing; Cost-effective; Closed Chamber Doctor Blade; High Precision Pressure Adjustment
Specifications:
| Processed Materials | ||
|---|---|---|
| Substrates | Paper, non-woven fabric, PE, PET, OPP, BOPP, etc. (Thickness 0.01~0.5mm) | |
| Capability | ||
| Printing Width | 850/1000/1200/1300/1400/1500/1600/1700/1800/2000mm (Customizable) | |
| Max. Speed | 200~300m/min | |
| Main Drive | Gear drive | |
| Max. Unwinder & Rewinder Diameter | Paper 1500mm, Film 800mm | |
| Printing | ||
| Printing Repeat | 350~1000mm (Customizable) | |
| Number of Printing Units | 4/6/8 (Customizable) | |
| Registration Accuracy | ±0.10mm | |
| Types of Ink | Water-based ink, Solvent ink, UV ink (Advan Notice Required) | |

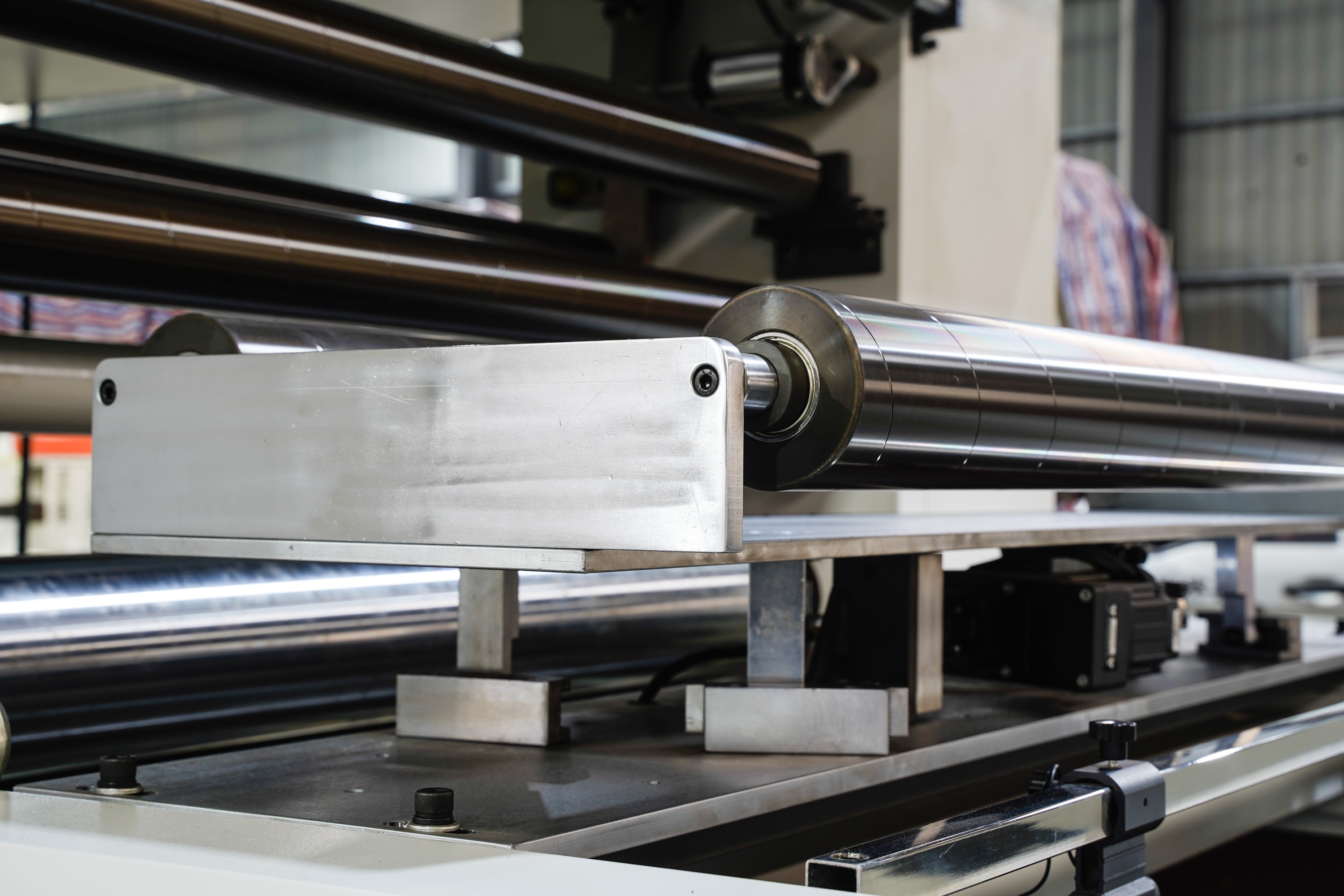

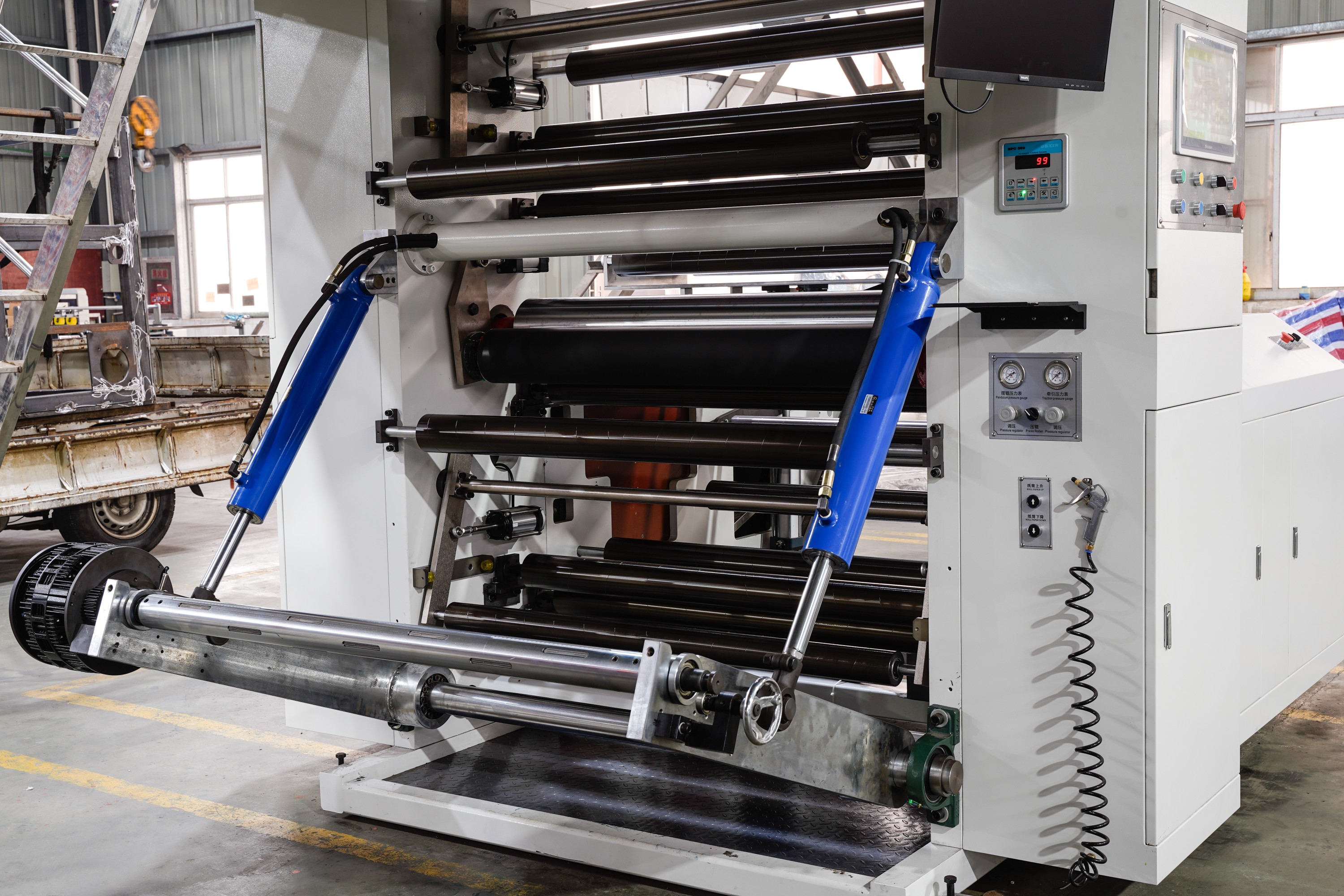

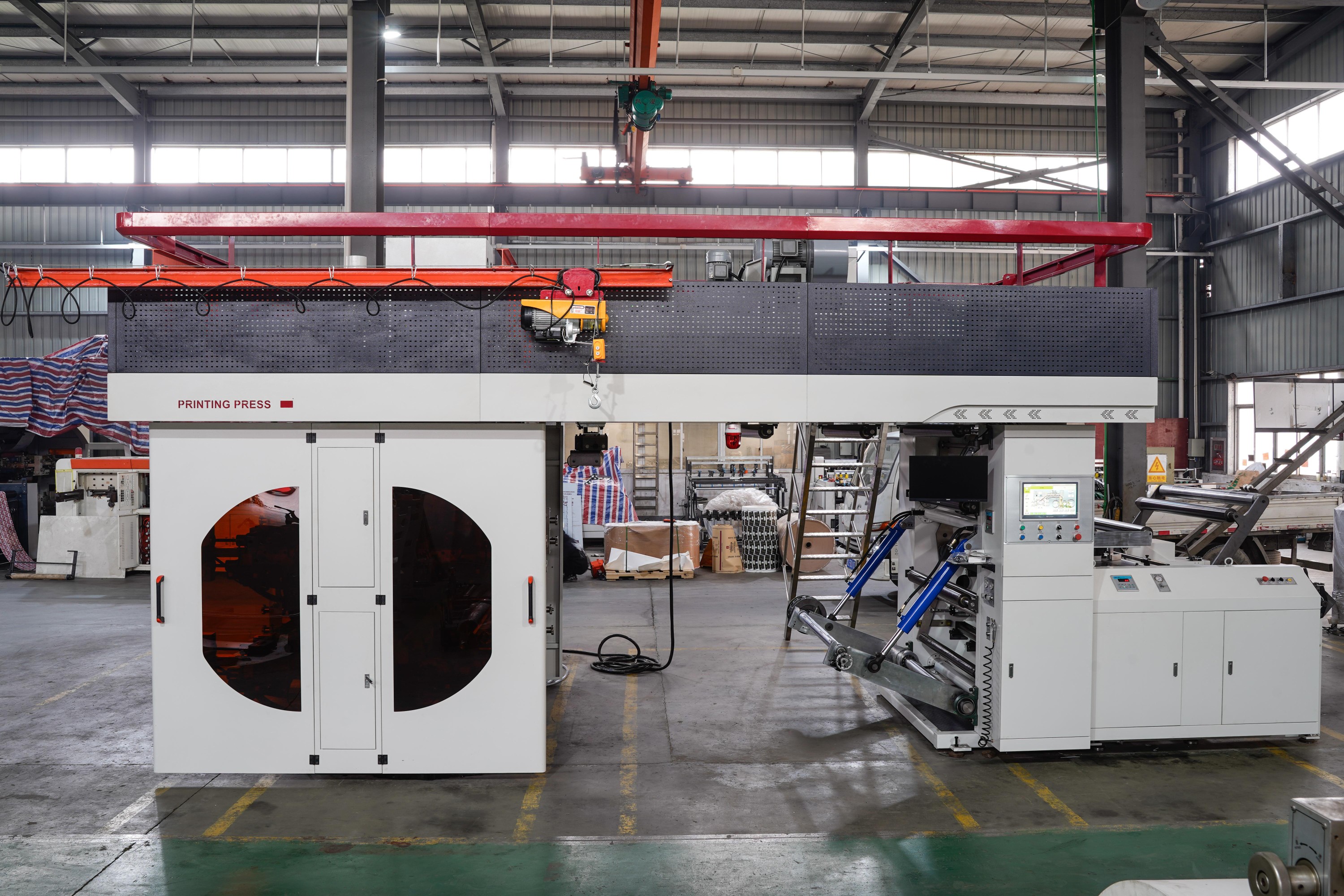

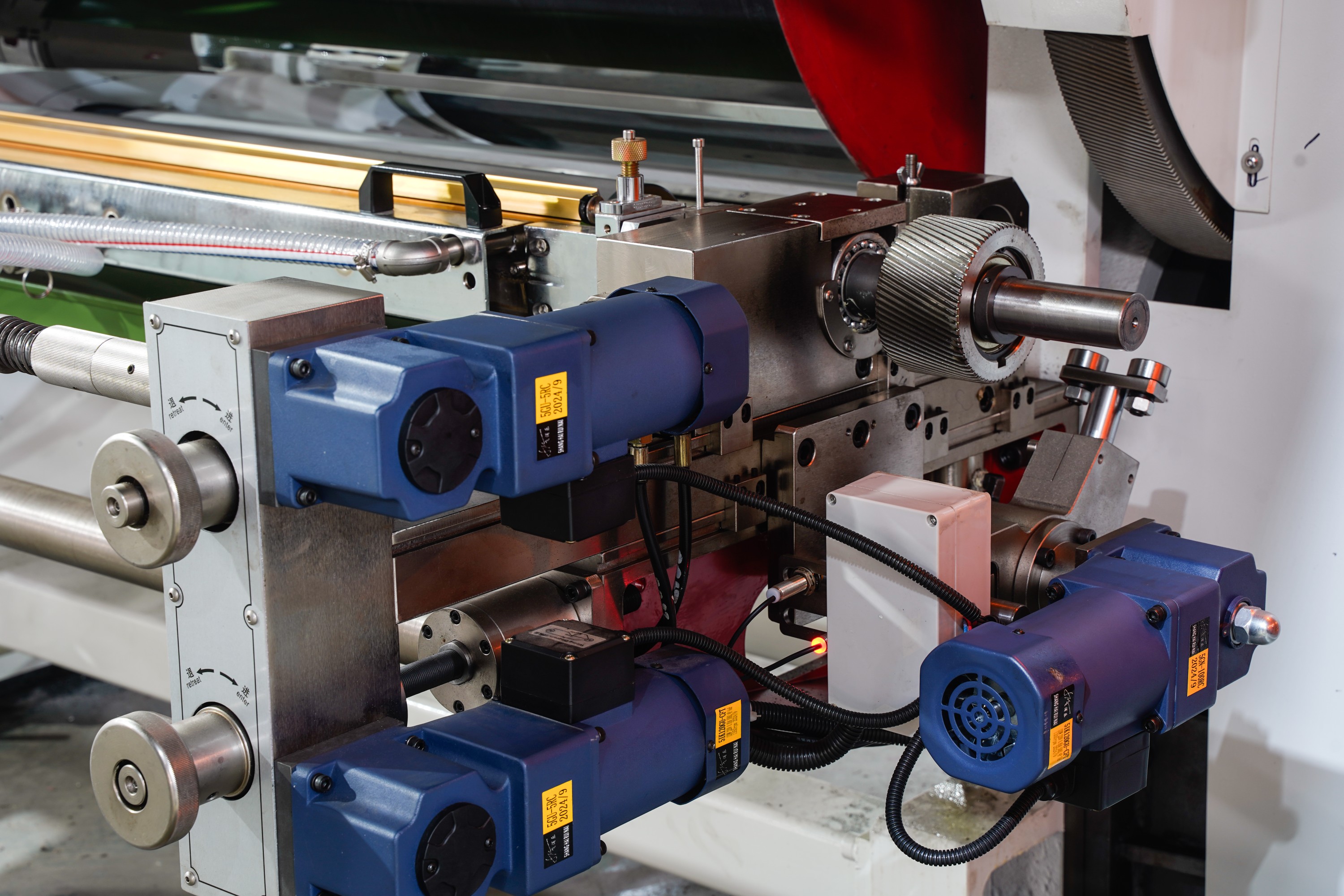

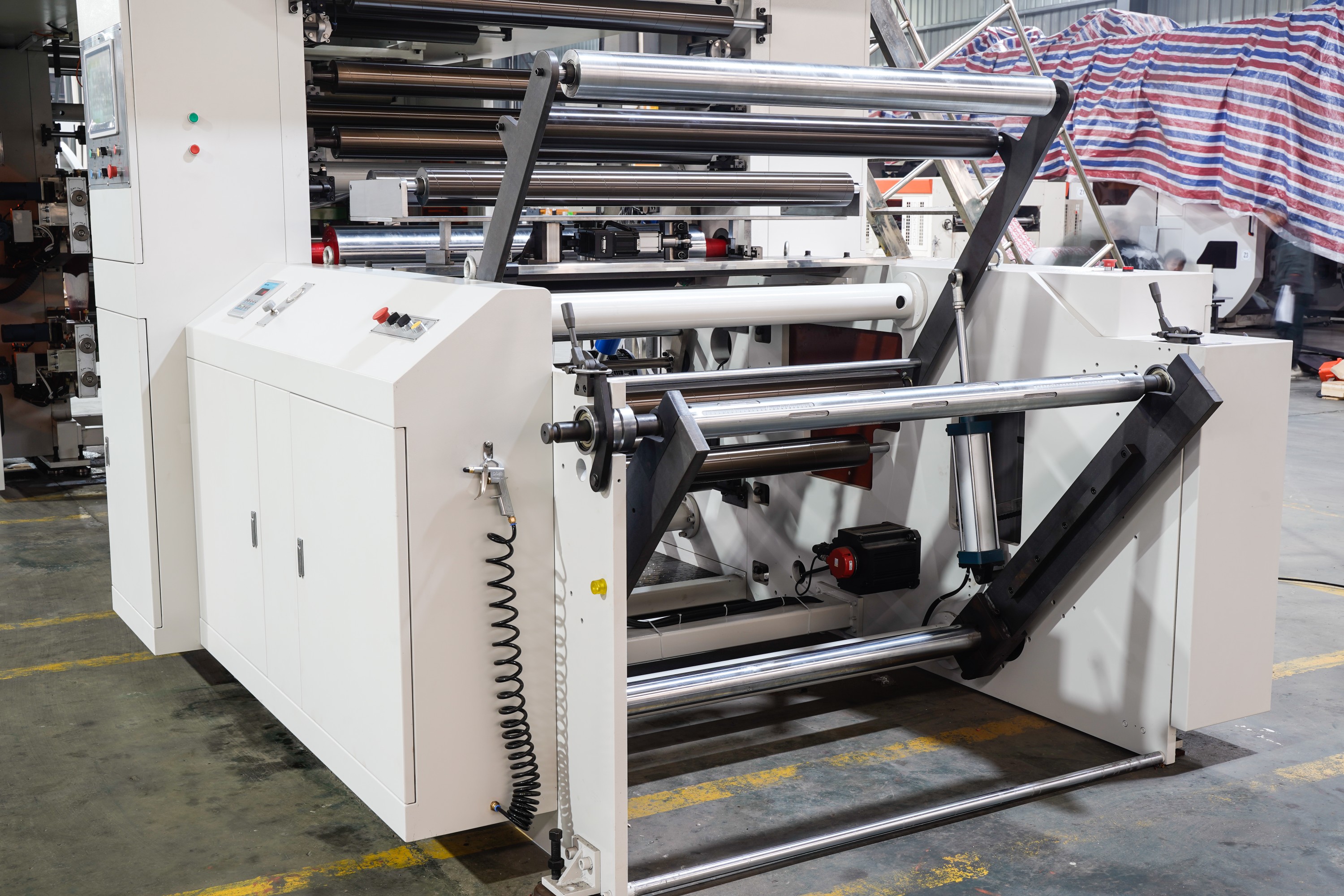

Pictures:
 |  |
 |  |
 |  |
